Uncertainty Analysis

The following tutorial demonstrates how one may perform an uncertainty analysis of a simulation model via calisim. We will first import our required dependencies.

from calisim.data_model import (
	DistributionModel,
	ParameterDataType,
	ParameterSpecification,
)
from calisim.example_models import SirOdesModel
from calisim.uncertainty import (
	UncertaintyAnalysisMethod,
	UncertaintyAnalysisMethodModel,
)
import numpy as np
import pandas as pd
from scipy.integrate import solve_ivp

SIR Model Parameters and Initial Conditions

We next define our forward model. We will use an SIR (susceptible, infected, and recovered) compartmental model, combined with SciPy’s solver for ordinary differential equations. The SIR model is expressed as a system of ordinary differential equations where:

Parameter	Value	Description
β (beta)	0.4	Infection rate: probability of transmission per contact per time unit
γ (gamma)	0.1	Recovery rate: fraction of infected recovering per time unit
		Average infectious period = 1 / γ = 10 time units

With the following compartments:

Compartment	Symbol	Initial Value	Description
Susceptible	S0	999	Individuals who can catch the disease (N - I0 - R0)
Infected	I0	1.0	Individuals currently infected and can spread the disease
Recovered	R0	0	Individuals recovered or removed; no longer infectious

def sir_simulate(parameters: dict) -> np.ndarray | pd.DataFrame:
    def dX_dt(_: np.ndarray, X: np.ndarray) -> np.ndarray:
        S, I, _ = X
        dotS = -parameters["beta"] * S * I / parameters["N"]
        dotI = (
            parameters["beta"] * S * I / parameters["N"] - parameters["gamma"] * I
        )
        dotR = parameters["gamma"] * I
        return np.array([dotS, dotI, dotR])

    X0 = [parameters["S0"], parameters["I0"], parameters["R0"]]
    t = (parameters["t"].min(), parameters["t"].max())
    x_y = solve_ivp(
        fun=dX_dt, y0=X0, t_span=t, t_eval=parameters["t"].values.flatten()
    ).y

    df = pd.DataFrame(dict(dotS=x_y[0, :], dotI=x_y[1, :], dotR=x_y[2, :]))
    return df

We will perform a simulation study with the following ground-truth parameters:

model = SirOdesModel()
pd.DataFrame(model.GROUND_TRUTH, index=[0])

	beta	gamma	N	I0	R0	S0
0	0.4	0.1	1000	1.0	0	999.0

When supplied to our forward model, these ground-truth parameters will generate the observed data below:

observed_data = model.get_observed_data()
observed_data.head(6)

	dotS	dotI	dotR	day
0	999.000000	1.000000	0.000000	0
1	998.534208	1.349201	0.116592	1
2	997.906105	1.819995	0.273899	2
3	997.059813	2.454180	0.486007	3
4	995.919926	3.308098	0.771976	4
5	994.385263	4.457212	1.157524	5

Let’s view the trajectory of infected individuals over time in days.

observed_data.plot.scatter("day", "dotI")

<Axes: xlabel='day', ylabel='dotI'>

Uncertainty Analysis via Polynomial Chaos

Next, let’s use calisim to perform an uncertainty analysis of the simulated number of infected. To start with, we’ll need to define our ParameterSpecification parameter specification:

parameter_spec = ParameterSpecification(
	parameters=[
		DistributionModel(
			name="beta",
			distribution_name="uniform",
			distribution_args=[0.3, 0.5],
			data_type=ParameterDataType.CONTINUOUS,
		),
		DistributionModel(
			name="gamma",
			distribution_name="uniform",
			distribution_args=[0.05, 0.15],
			data_type=ParameterDataType.CONTINUOUS,
		),
	]
)

This contains information concerning the various parameter names, probability distributions, ranges, distribution parameters, and data types.

We next need to create a wrapper function around our forward model to ensure there’s compatibility with the calisim API.

def uncertainty_func(
	parameters: dict, simulation_id: str, observed_data: np.ndarray | None, t: pd.Series
) -> float | list[float]:
    simulation_parameters = model.GROUND_TRUTH.copy()
    simulation_parameters["t"] = t

    for k in ["beta", "gamma"]:
        simulation_parameters[k] = parameters[k]

    simulated_data = sir_simulate(simulation_parameters).dotI.values
    return simulated_data

The last step is to create an UncertaintyAnalysisMethodModel specification for the calibration procedure itself, which we then supply to an UncertaintyAnalysisMethod calibrator. We’ll use the polynomial chaos method via the Chaospy engine.

specification = UncertaintyAnalysisMethodModel(
	experiment_name="chaospy_uncertainty_analysis",
	parameter_spec=parameter_spec,
	observed_data=observed_data.dotI.values,
	solver="linear",
	algorithm="least_squares",
	method="sobol",
	order=2,
	n_samples=200,
	output_labels=["Number of Infected"],
	calibration_func_kwargs=dict(t=observed_data.day)
)

calibrator = UncertaintyAnalysisMethod(
	calibration_func=uncertainty_func, specification=specification, engine="chaospy"
)

Finally, we’ll run the calibration procedure. This is composed of 3 steps:

1. Specify: Define your calibration problem: Parameter distributions, observed data, objective/discrepancy function, and calibration settings (like algorithm, directions, iterations)

2. Execute: Run the actual calibration process (simulation + optimization/inference)

3. Analyze: Process, summarize, and optionally save plots/metrics of the calibration results

Or SEA.

calibrator.specify().execute().analyze()

<calisim.uncertainty.implementation.UncertaintyAnalysisMethod at 0x7fbc857460e0>

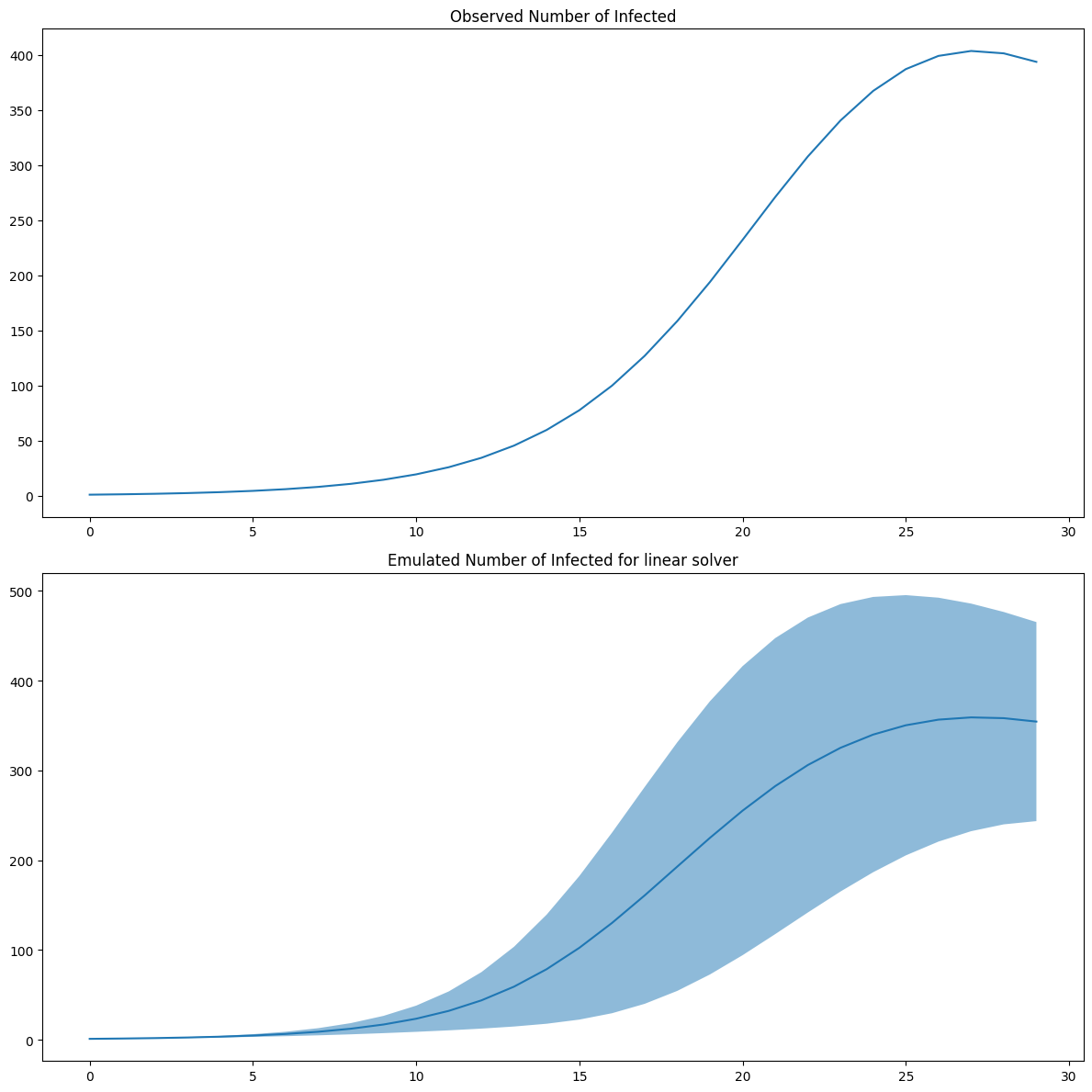

We can see that the uncertainty of the infected number increases over time relatively proportionately to the number of infections.

Uncertainty Analysis via Polynomial Chaos by Quadrature

Let’s repeat the uncertainty analysis procedure above using polynomial chaos via the chaospy library. But this time by quadrature.

We can reuse both the parameter specification and wrapper function defined above. But we will need to change the calibration specification. One advantage of calisim is the ability to compare different calibration algorithms with minimal code changes.

specification.solver="quadrature"
specification.method="grid"

calibrator = UncertaintyAnalysisMethod(
	calibration_func=uncertainty_func, specification=specification, engine="chaospy"
)

calibrator.specify().execute().analyze()

<calisim.uncertainty.implementation.UncertaintyAnalysisMethod at 0x7fbc856ae1d0>

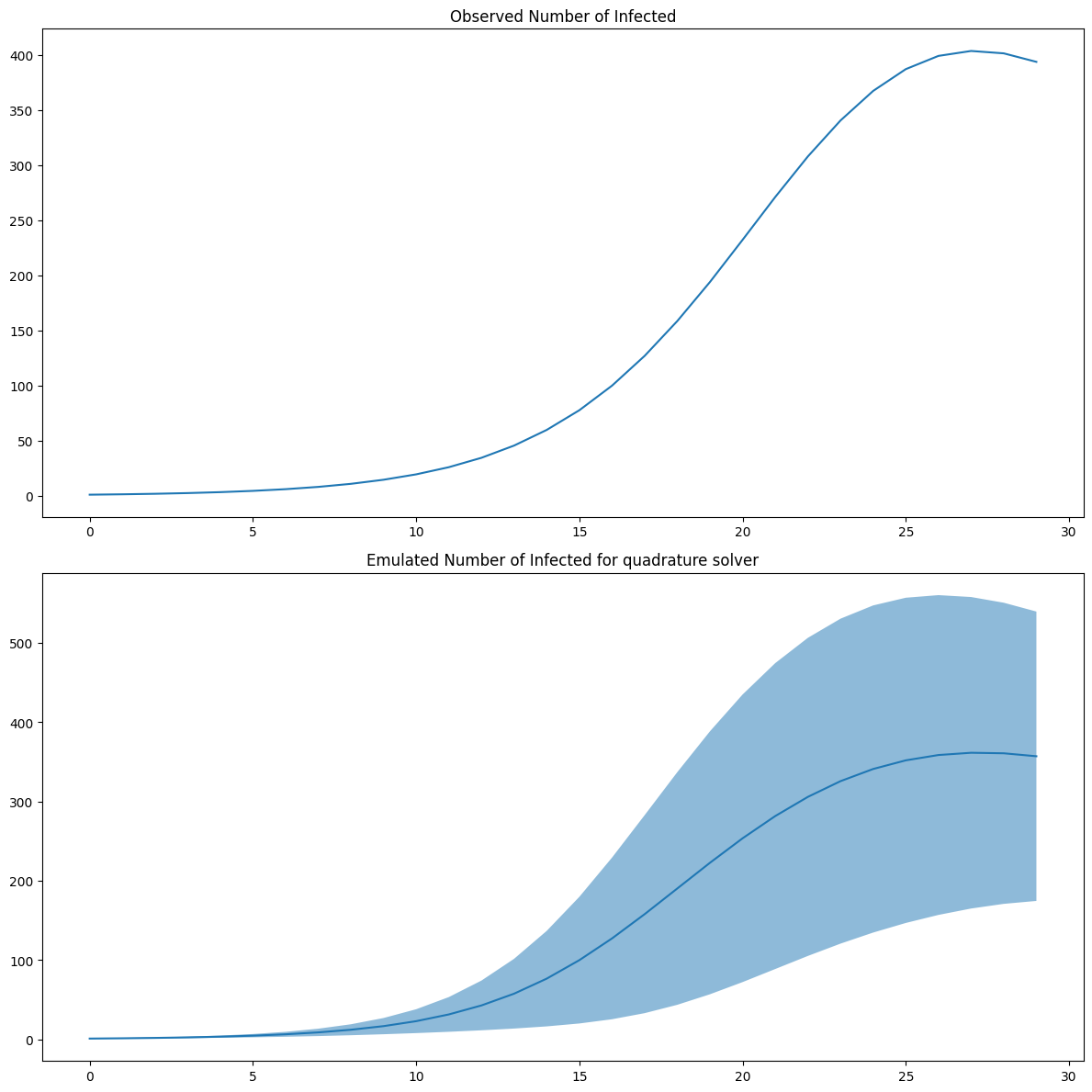

We can see that the uncertainty of the infected number increases over time relatively proportionately to the number of infections.

When performing the uncertainty analysis via quadrature by constructing a grid, the prediction intervals appear to be wider than when using a linear solver and Sobol sampling.
